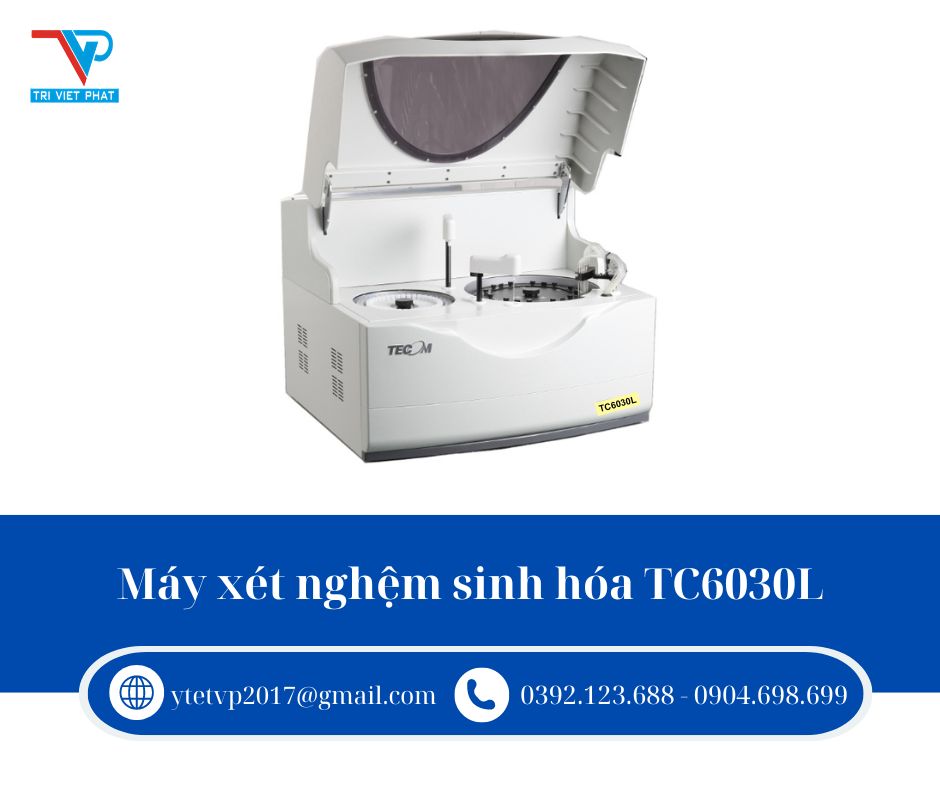

TC6030L Automatic Chemistry Analyzer

1. Specifications

• Speed: 260 tests/hour
• Test methods: endpoint, kinetic, two-point, dual reagent, dual wavelength, multiple standard…. Open system for all reagents
• Data handling: memory for up to 200,000 patient data

2. Reaction cuvette

• 90 reusable cuvettes
• Automatic empty cuvette check
• Colorimetric system based on light separation model after cuvette
• Removable cuvette, easy to replace

3. Calibration

• Calibration: linear/nonlinear multi-point calibration
• Retest: automatically retest samples when results are out of linear range or there is insufficient sample.

4. Reaction system

• Reaction cuvettes: 90 pieces made of special material
• Cuvette optical path length: 6mm
• Reaction volume: 200-500μl
• Response time: 8-10 minutes
• Reaction temperature: 37°C±0.1°C
• Mixing system: Independent mixing system
